Nice Rack Canada built up this guitar rack system a little while ago for a client.
The signal flow for this beauty is;
UHF Systems & Cable –> Input Switcher –> Input Buffer with Tuner Split to TC Electronic PolyTune Mini Noir –> Xotic Wah –> Boss FV30H –> Nice Rack Canada 10kΩ Buffer –>
Loop 1 – Keeley Compressor Pro
Loop 2 – Ibanez TubeScreamer
Loop 3 – AnalogMan King of Tone Red
Loop 4 – AnalogMan King of Tone Yellow
Loop 5 – OD/Fuzz Insert Point
Loop 6 – Dallas Arbiter Fuzz Face (rehoused)
Loop 7 – Z Vex Fuzz Factory
Loop 8 – Tribute Audio Purple Muff
Loop 9 – Dunlop Echo Plex PreAmp
Dry Split to Output Mixer
Loop 10 – Modulation Insert Point
Loop 11 – Eventide H9
Loop 12 – Strymon Mobius

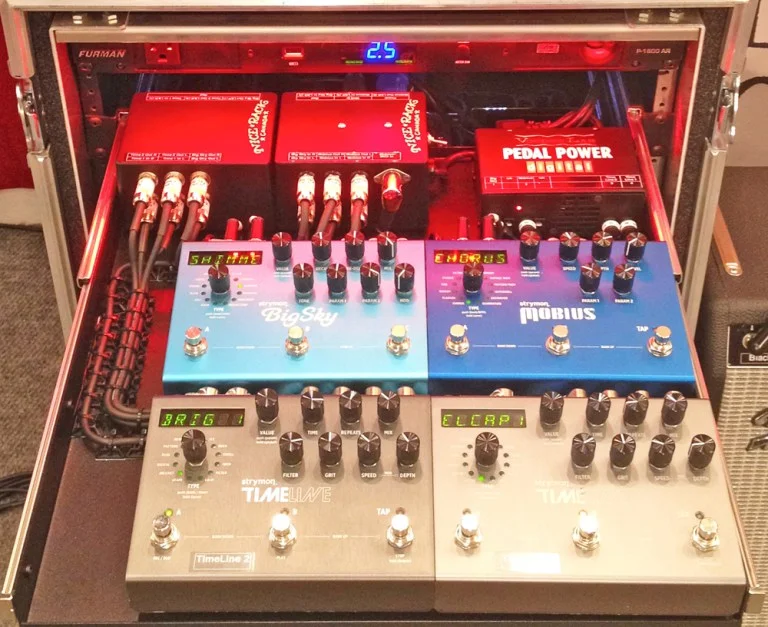

Loop 13 – Strymon TimeLine #1 & #2
Loop 14 – Strymon Big Sky
Stereo Output Mixer to 2x Fender Twin Reverb Amps
Mono Summing Mixer to Marshall BluesBreaker
Delay & Reverb Outputs are “Spillover” Mixed using 2x rehoused RJM Music Mini Line Mixers.
Switchers are the RJM Music Effects Gizmo & Rack Gizmo. The RG also provides MIDI control over amplifier switching functions.
The system’s Onstage Controller is the state of the future MIDI controller, the RJM Music MasterMind GT 16 with a modified Boss FV30L as an Expression Pedal and 4x Nice Rack Canada External Switches. 2x Switches are globally assigned to Tap Tempo & System Mute, 2x Switches are assigned per preset to specific functions as necessary.
Offstage Parallel Control is also covered by a 2nd RJM Music MasterMind GT 16 with External Switches & no expression pedal.
All effects pedals are powered by 2x Voodoo Lab Pedal Power Digital + 1x Pedal Power Iso-5.
System design & build by Nice Rack Canada.
